Other unofficial cables for TI:

Old version of parallel cable

Modified old version of parallel cable (=S5 link)

Parallel cable version fot Atari ST, Falcon, TT

Serial Link (=$4 link)

PICLink

Old version of PICLink



Old version of parallel cable (=$5link)

Old version of parallel cable

Parts:

2 1N4148 diodes
2 1kΩ resistors
1 2.5mm female stereo jack
1 DB25 male plug
1 DB25 hood
2 meters of 2 wire shielded cable

Order one to me for $10CDN (or $7US, 8), software included for all compatible platforms Yeah, I need to maintain the site...Anyway, concerning name, it's $5US, not $5CDN, so price is very reasonable...

Top of page


Modified old version

Modified old version of parallel cable

Parts:

2 1N4148 diodes
1 2.5mm female stereo jack
1 DB25 male plug
1 DB25 hood
2 meters of 2 wire shielded cable

Order one to me for $10CDN ($7US, 8), including softwares.

Top of page


Parallel cable version for Atari ST, Falcon and TT

Parallel cable for Atari ST

Parts:

1 1N4148 type diode
1 2.5mm female stereo jack
1 DB25 male plug
1 DB25 hood
2 meters of 2 wire shielded cable

Caution: Because I have no Atari, I cannot made nor test this cable.

Top of page



Serial Cable (=$4 Link)

Originally intended to use with TI 82 and TI 85, it is theoretically compatible with TI's software and the 83+. I'm waiting for your emails to confirm it works.
Order one to me for $10CDN (or $7US, 8), softwares included.

Serial Link Schematic

There's also another version of this cable for Atari ST, Falcon, and TT computers, following the schematic below:

Serial Link For Atari

Caution: Because I have no Atari, I cannot made nor test this cable.

Top of page


PICLink:

Another cable compatible with TI's one, based on a PIC microcontroller:

PIClink schematic

This schematic is property of Sami Khawam (in case you haven't noticed). It is reproduced here for more convenience, however, all questions concerning its operation must be adressed to him.

Parts:

2 18kΩ resistors
1 120 Ω resistor
1 470 Ω resistor
1 1kΩ resistor
1 10kΩ resistor
1 10F capacitor
2 1N4148 diodes
2 1N4150 diodes
2 5.1V W Zener diodes
1 4 Mhz resonator OR 1 4Mhz cristal + 2 22pF capacitors
1 LED
1 PIC16F84 microcontroller with
this program
1 DB9 female plug
1 DB9 hood
4 wires shielded cable
1 2.5mm female stereo jack
3 wires shielded cable
One power supply circuit

I sell pre-programmed PICs for $15CDN (12, $10US, price may vary according to respective change rate, shipping extra)

Top of page


Old PIClink version

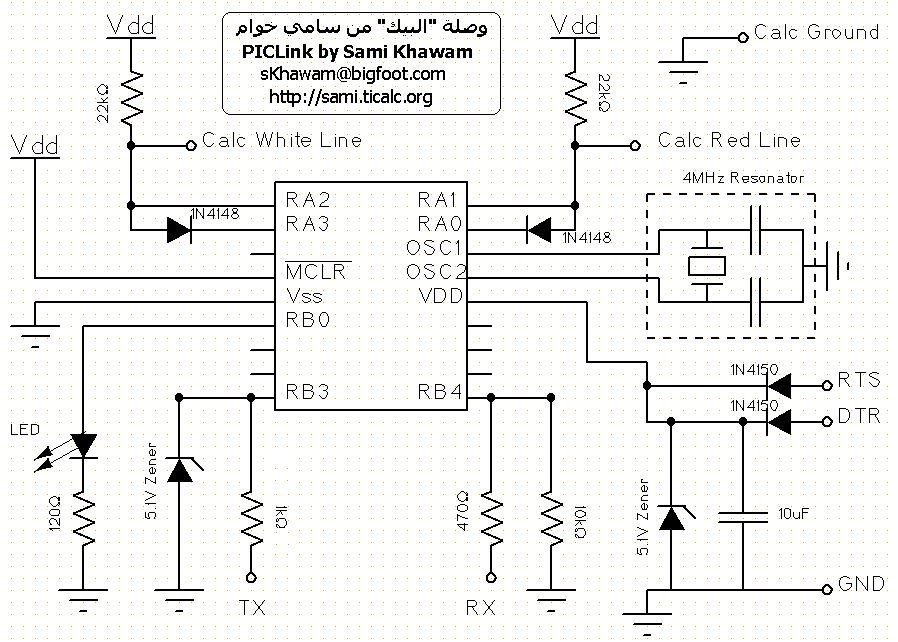

Old version of the PIClink schematic

Important notice

Parts:

1 120Ω resistor
1 470Ω resistor
1 10kΩ resistor
2 22kΩ resistor
1 10F capacitor
2 5,1V W Zener diodes
2 1N4148 diodes
2 1N4150 diodes
1 4 Mhz resonator OR 1 4Mhz cristal and 2 22pF capacitors
1 LED
1 PIC16F84 microcontroller with
this program
1 DB9 female plug
1 DB9 hood
4 wires shielded cable
1 2.5mm stereo jack
3 wires shielded cable
One power supply circuit

I sell pre-programmed PICs for $15CDN (12, $10US, price may vary according to respective change rate, shipping extra)

Top of page


Power supply circuit for PICLink

Power supply schematic

Parts for power supply:

1 +5V voltage regulator (ref. LM2931, 78L05, 7805)
1 0.1F capacitor
1 33F capacitor
1 6V or more power supply: 9V battery and its connector
OR wall adapter
